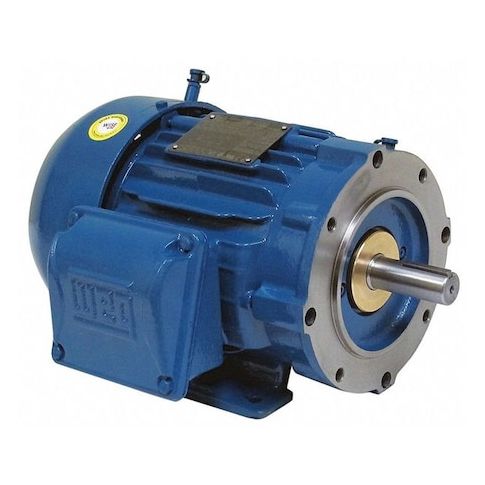

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 575V AC Voltage, 3600 Nameplate RPM MPN:00536ET3H184TC-W22
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 575V AC Voltage, 3600 Nameplate RPM
This 5 HP three-phase general purpose motor from Weg is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 3485 and a frame size of 184T, this motor is suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing. The motor's totally enclosed fan cooled enclosure design ensures reliable operation in harsh environments, while its rigid base mounting type provides stability and easy installation. Ideal for continuous duty applications, this motor offers high efficiency and a long lifespan, making it a cost-effective solution for demanding industrial applications.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings enable smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pumps and compressors
- Industrial machinery and equipment
- Power generation and transmission
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3485 rpm, Frame 184T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.72 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 20.00
- Package Height: 21.00
- Package Weight: 176.00
