Saw Arbor Motor, 7-1/2 HP, 3490 RPM, 575V MPN:00736ES3HSA80LR

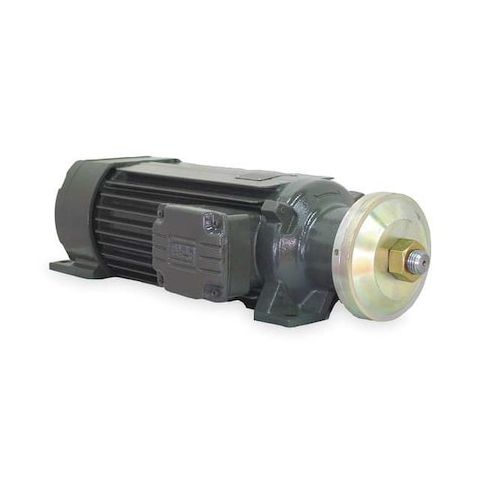

Saw Arbor Motor, 7-1/2 HP, 3490 RPM, 575V
The Weg Saw Arbor Motor is a high-performance, three-phase motor designed for demanding applications. With 7-1/2 HP and 3,600 RPM, it provides reliable power for saw arbors, cutting tables, and other heavy-duty equipment. Its totally enclosed air-over design and rigid base mounting ensure durability and stability. Suitable for use in 575V AC environments, this motor offers efficient operation and long lifespan. Ideal for woodworking, metal fabrication, and other industries requiring high-torque power, the Weg Saw Arbor Motor is a reliable choice for demanding applications. Its compact size and robust construction make it an excellent addition to any workshop or manufacturing facility.
Top product features:
- Three-Phase motor design
- Totally Enclosed Air-Over motor enclosure
- 7.5 HP power output
Top product applications:
- Pneumatic saws
- Milling machines
- Drilling machines
Power Tool Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, 575V AC Voltage, Full Load Amps 7.8 A, 80L Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Cast Iron
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 13.70
- Package Height: 9.00
- Package Weight: 128.00
Product info last updated on January 16, 2026 5:41am UTC
Category: Motors
