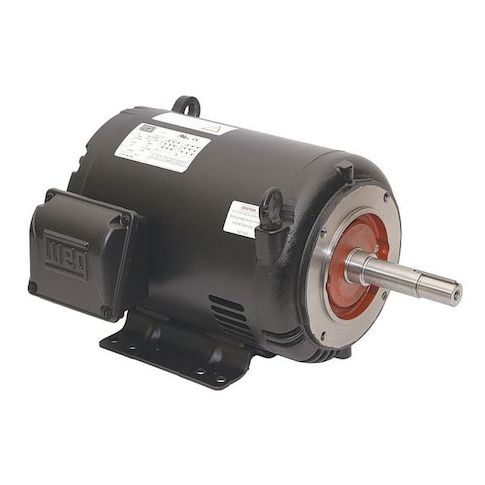

Pump Motor, 3-Ph, 20 HP, 254/6JM, 23.8A MPN:02036OT3E254JM-S
Pump Motor, 3-Ph, 20 HP, 254/6JM, 23.8A
This 20 HP, 3-phase pump motor from Weg is designed for continuous operation in demanding industrial applications. With a compact, close-coupled design and ball bearings for smooth performance, it's ideal for use in pumps, water treatment plants, and other high-volume fluid handling systems. The motor's inverter rating of 1000:1 ensures reliable operation with variable frequency drives, while its insulation class F and maximum ambient temperature of 40°C provide added durability in harsh environments. With a 3-year manufacturer's warranty and a lead time of just 10 days, this motor offers a reliable and efficient solution for a wide range of industrial applications.
Top product features:
- Close-coupled design for compact installation and reduced footprint
- Ball bearings for smooth and efficient operation
- Inverter-rated for reliable performance in variable frequency drive applications
Top product applications:
- Pump
- Inverter
- Continuous Duty
Close-Coupled Pump Motor, Body Dia. 12.1 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254/6JM, Hz 60 Hz, Full Load Amps 3.3-3.0/1.5.0, Height 12 in, HP 20, HP @ 50Hz 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 16 3/4 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 15.50
- Package Height: 12.50
- Package Weight: 196.00
Product info last updated on February 3, 2026 10:49am UTC
Category: Motors
