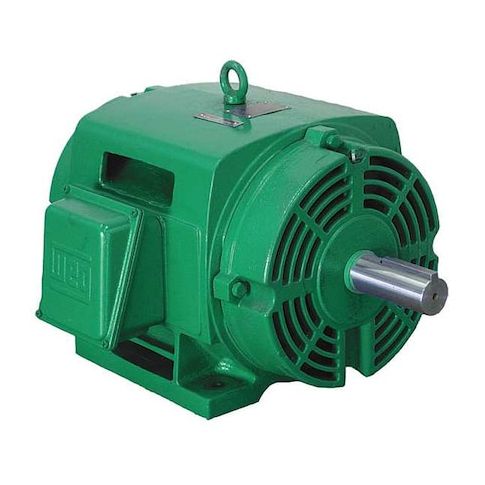

General Purpose Motor, Three Phase, 25 HP, 3530 rpm Nameplate RPM, 575V AC, 256T Frame MPN:02536OT3H256T
General Purpose Motor, Three Phase, 25 HP, 3530 rpm Nameplate RPM, 575V AC, 256T Frame
This 25 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. Its robust construction and high efficiency make it ideal for continuous duty operations, with a nameplate RPM of 3530 and a maximum ambient temperature of 40 degrees C. The motor features a rigid base mounting type and ball bearings for smooth operation. Its high service factor of 1.15 and insulation class F ensure reliable performance in demanding environments. Suitable for use in facilities with 60 Hz power, this motor is a reliable choice for heavy-duty applications.
Top product features:
- Three-Phase Design
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial machinery
- Manufacturing equipment
- Pumps and compressors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 3530 rpm, Frame 256T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.50
- Package Width: 19.50
- Package Height: 16.00
- Package Weight: 261.00
Product info last updated on January 16, 2026 10:10am UTC
Category: Motors
