Pump Mtr, 3ph, 50hp, 3555, 208-230/460, 324JP MPN:05036OT3E324JP-W40
Pump Mtr, 3ph, 50hp, 3555, 208-230/460, 324JP

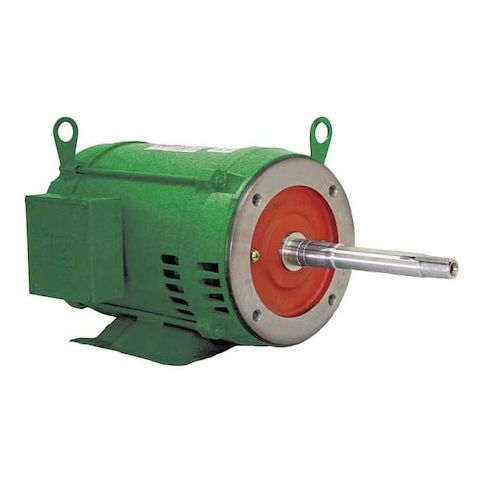

This 50hp close-coupled pump motor is designed for continuous duty cycles in demanding industrial applications. With a robust frame and ball bearings, it provides reliable operation in a wide range of temperatures. Its inverter-rated design and 1000:1 rating make it suitable for use with variable frequency drives, allowing for precise control and energy efficiency. This motor is ideal for applications such as water treatment, chemical processing, and wastewater management, where a high-torque, low-speed operation is required. Its compact design and easy installation make it a convenient choice for OEMs and end-users alike.
Top product features:
- Close-Coupled design allows for efficient and compact installation
- Ball bearings provide reliable and long-lasting motor operation
- Inverter rating of 1000:1 enables high efficiency and versatility in variable speed applications
Top product applications:
- Pump
- Inverter
- Motor
Close-Coupled Pump Motor, Body Dia. 17.8 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 324JP, Hz 60 Hz, Full Load Amps 106.2-118.2/59.1, Height 17 3/4 in, HP 50, HP @ 50Hz 40, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 20 13/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.58
- Package Width: 24.88
- Package Height: 19.37
- Package Weight: 510.00
Product info last updated on January 18, 2026 12:26am UTC
Category: Motors
