Pump Mtr, 3ph, 30hp, 1770, 208-230/460, 286JP MPN:03018OT3E286JP-W40
Pump Mtr, 3ph, 30hp, 1770, 208-230/460, 286JP

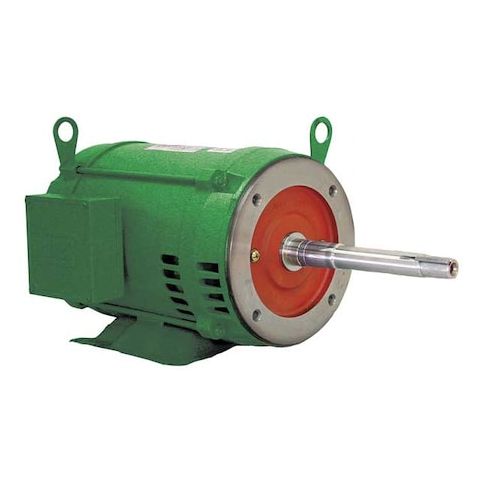

This 30 horsepower, three-phase pump motor from Weg is a reliable and efficient solution for a variety of applications, including industrial and commercial pumping systems. Its close-coupled design and ball bearings ensure smooth operation and long lifespan, while its inverter-rated design allows for flexible and efficient use with variable frequency drives. The motor is suitable for continuous duty cycles and can operate in temperatures up to 40 degrees Celsius. With a 3-year manufacturer's warranty, this motor provides peace of mind and protection for your investment. Its compact size and durable design make it an ideal choice for a range of applications.
Top product features:
- Close-Coupled design allows for efficient heat dissipation and reduced vibration
- Ball bearings provide long-lasting motor durability and reliability
- Inverter rated design enables smooth operation with variable frequency drives
Top product applications:
- Pump
- Inverter Rated
- Motor Application
Close-Coupled Pump Motor, Body Dia. 15.7 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 286JP, Hz 60 Hz, Full Load Amps 63.7-70.8/35.4, Height 15 3/4 in, HP 30, HP @ 50Hz 25, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 20 5/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.50
- Package Width: 23.00
- Package Height: 18.00
- Package Weight: 450.00
Product info last updated on February 14, 2026 11:39pm UTC
Category: Motors
