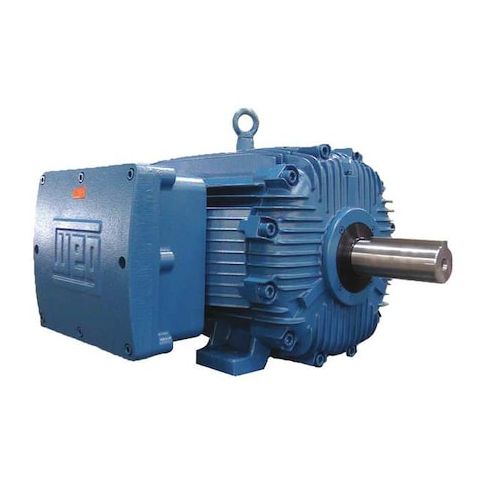

Hazardous Loc Mtr, 3 Ph, TEFC, 20 HP, T4 MPN:02012XT3E286T
Hazardous Loc Mtr, 3 Ph, TEFC, 20 HP, T4
This hazardous location motor is designed for use in environments where standard motors cannot operate, such as in chemical plants, oil refineries, or areas with explosive gases. Its three-phase design and 20 horsepower output make it suitable for heavy-duty applications, while its totally enclosed fan-cooled (TEFC) design ensures reliable operation in high-temperature environments. With a continuous duty cycle and 1.15 service factor, this motor provides long-lasting performance and can operate at 208V, making it a versatile option for a range of applications, including pumps, compressors, and conveyor systems.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Pumps
- Compressors
- Fans
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,175 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 48.4/24.2 A, 286T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.70
- Package Width: 33.50
- Package Height: 17.80
- Package Weight: 519.00
Product info last updated on January 31, 2026 11:46pm UTC
Category: Motors
