DC Permanent Magnet Motor, 56C MPN:MT-070

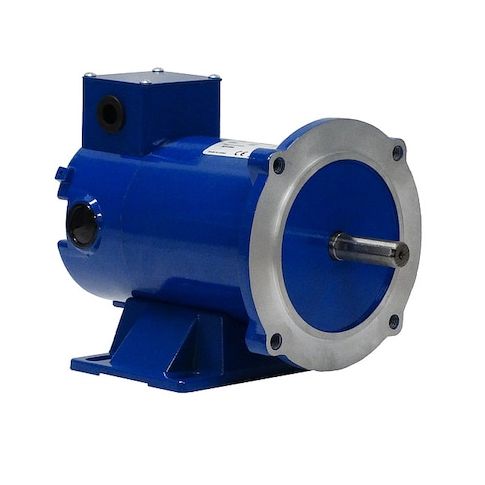

DC Permanent Magnet Motor, 56C
This 1/2 HP DC permanent magnet motor from Weg is designed for a wide range of applications, including industrial automation, robotics, and material handling. Its compact design and rigid base make it ideal for use in tight spaces, while its continuous duty cycle and totally enclosed non-ventilated design ensure reliable operation in harsh environments. With a nameplate RPM of 1,750 and a maximum ambient temperature of 40°C, this motor is suitable for use in a variety of applications, including conveyor systems, pumps, and fans. Its high efficiency and long lifespan make it a cost-effective solution for many industrial needs.
Top product features:
- Totally Enclosed Nonventilated Motor Enclosure Design provides a safe and protected environment for the motor's components.
- 1,750 Nameplate RPM allows for high-speed operation in various applications.
- Ball Bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial Automation
- Material Handling Equipment
- Robotics and Automation Systems
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet DC, 1/2 HP, Nameplate RPM 1,750, Voltage 24V DC, 20.0 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection Not Applicable, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.70
- Package Width: 8.10
- Package Height: 8.30
- Package Weight: 18.80
Product info last updated on March 12, 2026 10:38pm UTC
Category: Motors
