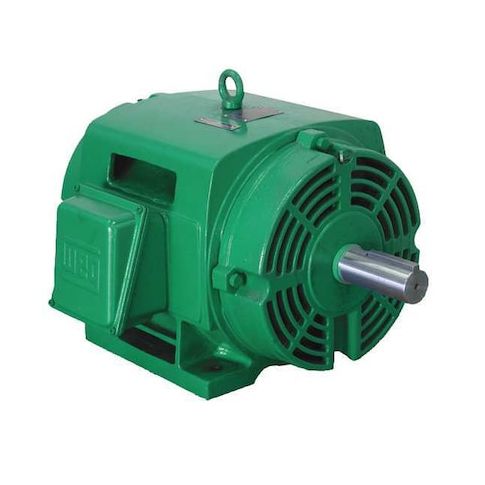

Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:03018OT3E286T-W40
Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 1,770, Frame 286T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 69.8/34.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CSA (LR38324), UL (E104590)
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.20
- Package Width: 29.50
- Package Height: 17.80
- Package Weight: 423.00
Product info last updated on February 1, 2026 2:00am UTC
Category: Motors
