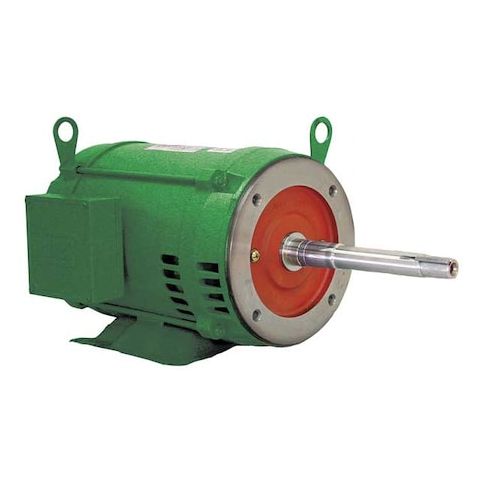

Pump Mtr, 3ph, 15hp, 1775, 208-230/460, 254JP MPN:01518OT3E254JP-W40
Pump Mtr, 3ph, 15hp, 1775, 208-230/460, 254JP
This close-coupled pump motor from Weg is a reliable and efficient solution for a variety of industrial applications. Designed for continuous duty cycles, it can handle demanding tasks with ease. With a powerful 15hp motor and a wide range of voltage options, it's perfect for use in harsh environments with high ambient temperatures. The motor's inverter-rated design and 1000:1 inverter rating make it ideal for use in applications where variable frequency drives are required. Suitable for use in pumps, this motor provides a long-lasting and cost-effective solution for industries such as manufacturing, oil and gas, and water treatment.
Top product features:
- Close-coupled design for compact installation
- Three-phase operation for efficient power distribution
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pump
- Industrial Equipment
- Industrial Machinery
Close-Coupled Pump Motor, Body Dia. 14.3 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254JP, Hz 60 Hz, Full Load Amps 33.5-37.2/18.6, Height 14 3/8 in, HP 15, HP @ 50Hz 10, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 17 1/4 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.50
- Package Width: 23.50
- Package Height: 22.00
- Package Weight: 279.00
Product info last updated on March 11, 2026 3:21pm UTC
Category: Motors
