Arbor Motor, 10 HP, 1720 RPM, 208-230/460V MPN:01018ES3ESA90LR

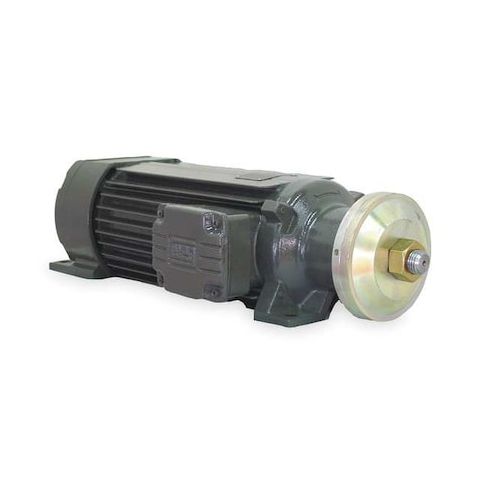

Arbor Motor, 10 HP, 1720 RPM, 208-230/460V
The Weg Arbor Motor is a high-performance 10 HP, three-phase motor designed for industrial applications. With a nameplate RPM of 1,715 and a continuous duty cycle, this motor is ideal for use in manufacturing facilities, warehouses, and other high-traffic areas. The motor's totally enclosed air-over design provides excellent protection against dust and moisture, making it suitable for use in harsh environments. Its rigid base mounting type ensures stable and reliable operation. The motor's 90L frame size and 208-230/460V voltage range make it versatile and adaptable to various applications, including conveyor systems, pumps, and compressors.
Top product features:
- Three-phase motor design for efficient power delivery
- Totally enclosed air-over motor enclosure for dust and moisture protection
- Continuous duty cycle for sustained operation without overheating
Top product applications:
- Power tools such as drill presses and saws
- Pumps and blowers for industrial applications
- Air compressors and vacuum systems
Power Tool Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,715 RPM, No. of Speeds 1, 208-230/460V AC Voltage, Full Load Amps 32.5-29.4/14.7 A, 90L Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 22 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.50
- Package Width: 14.00
- Package Height: 10.00
- Package Weight: 188.00
Product info last updated on February 24, 2026 12:37pm UTC
Category: Motors
