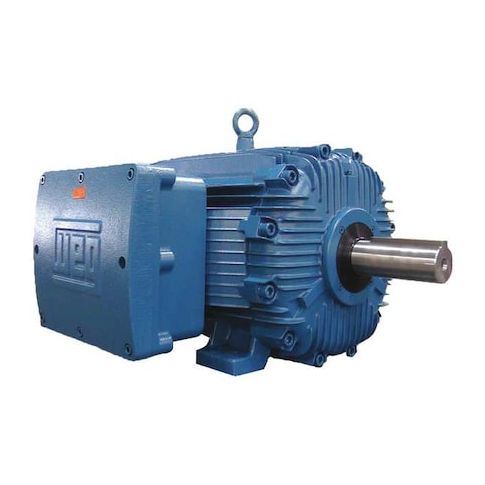

Hazardous Loc Mtr, 3 Ph, TEFC, 5 HP, T4 MPN:00512XT3E215T

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,160 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.7/6.8 A, 215T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous

Additional Information
