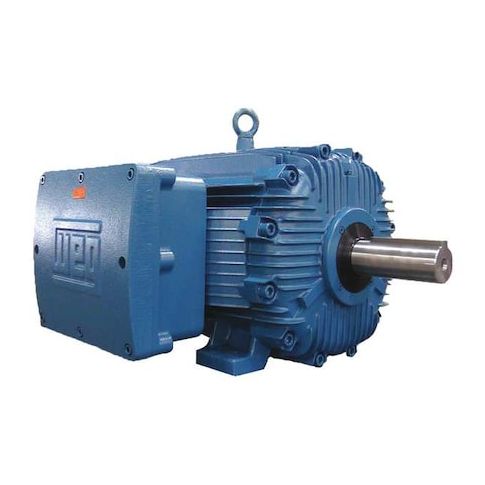

Hazardous Loc Mtr, 3 Ph, TEFC, 25 HP, T4 MPN:02536XT3E284TS
Hazardous Loc Mtr, 3 Ph, TEFC, 25 HP, T4
This hazardous location motor is designed for use in harsh environments, featuring a totally enclosed fan-cooled enclosure and a maximum ambient temperature of 40 degrees C. With a 25 hp rating and 3,555 RPM, it's ideal for applications requiring high power and reliability. Suitable for use in Class I and Class II hazardous locations, this motor offers a high service factor of 1.15 and a motor thermal protection system for added reliability. Its compact design and continuous duty cycle make it perfect for applications such as mining, oil and gas, and other industries where high power is required in a rugged environment.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Thermal protection with a temperature-stat
Top product applications:
- Industrial Process Control
- Petrochemical Plants
- Power Generation Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 3,555 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 57.6/28.6 A, 284TS Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 23.00
- Package Height: 18.00
- Package Weight: 476.00
Product info last updated on February 24, 2026 8:46am UTC
Category: Motors
