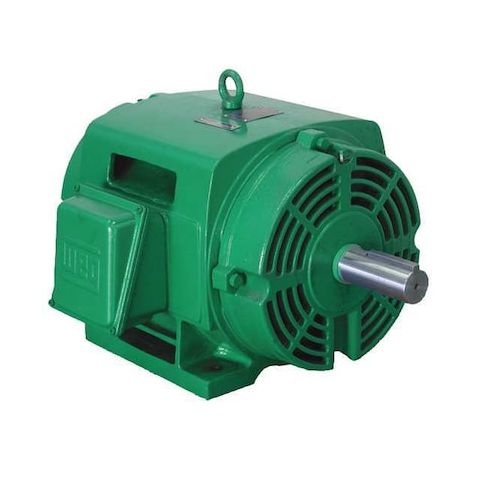

Three-Phase General Purpose Motor, 60 HP, 364T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM MPN:06018OT3E364T-W40
Three-Phase General Purpose Motor, 60 HP, 364T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM
This high-performance 60 HP three-phase general purpose motor is designed for demanding applications requiring reliability and efficiency. With a nameplate RPM of 1780 and a nominal efficiency of 95%, it provides consistent power output and minimizes energy consumption. Suitable for continuous duty, this motor is ideal for use in industrial settings, such as manufacturing facilities, pumping stations, and conveyor systems. Its rigid base motor mounting type and open drip-proof enclosure design ensure easy installation and maintenance. With a service factor of 1.15, it can handle varying loads and temperatures, making it a reliable choice for a wide range of applications.
Top product features:
- Three-Phase Design
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps
- Industrial machinery
- Fans and blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 60 HP, Nameplate RPM 1780 rpm, Frame 364T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 140.0/69.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.37
- Package Width: 32.36
- Package Height: 28.43
- Package Weight: 935.00
Product info last updated on February 27, 2026 10:54am UTC
Category: Motors
