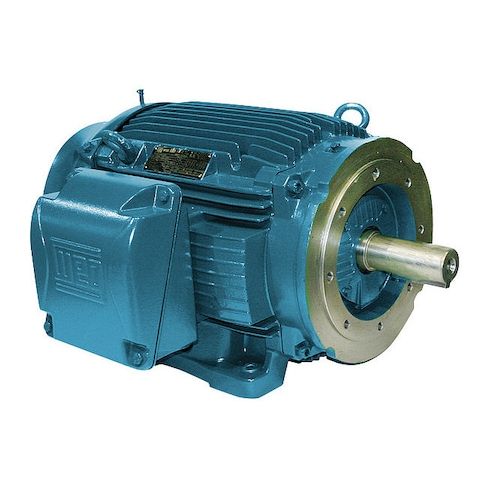

Three-Phase General Purpose Motor, 30 HP, 286TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:03018ET3E286TC-W22
Three-Phase General Purpose Motor, 30 HP, 286TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1765 rpm, Frame 286TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 70.2/35.1 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 22.00
- Package Height: 18.00
- Package Weight: 480.00
Product info last updated on March 22, 2026 12:01pm UTC
Category: Motors
