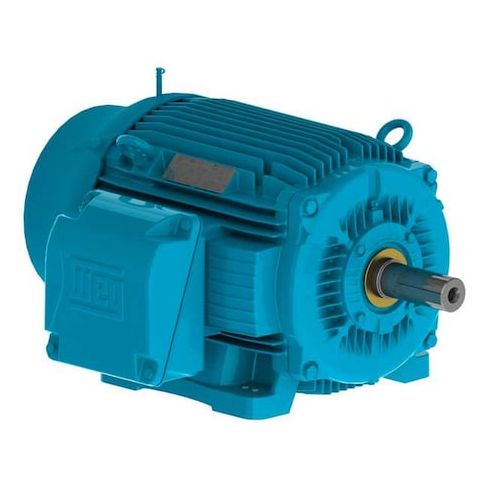

Three-Phase Severe Duty Motor, 30 hp HP, 286T Frame, 460V AC Voltage, 1, 760 RPM Nameplate RPM MPN:03018ST3QIE286T-W22
Three-Phase Severe Duty Motor, 30 hp HP, 286T Frame, 460V AC Voltage, 1, 760 RPM Nameplate RPM
This three-phase severe duty motor is designed for high-performance applications that require continuous operation in harsh environments. With a 30 hp rating and 1,760 RPM, it's ideal for use in industrial settings such as manufacturing, oil and gas, and chemical processing. The motor's totally enclosed fan-cooled design and rigid base mounting ensure reliable operation in temperatures up to 40°C. Suitable for applications including pumps, fans, and conveyors, this motor offers a high service factor of 1.25 and is built to withstand the demands of severe duty operation. Its compact size and robust construction make it a valuable asset for industrial operations.
Top product features:
- Three-phase operation for efficient power distribution
- Totally Enclosed Fan Cooled design for improved reliability and reduced maintenance
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump applications where high torque is required due to the motor's severe duty rating and 1.25 service factor
- Fans or blowers that require continuous operation in harsh environments due to the motor's totally enclosed fan cooled design
- Conveyors or other material handling equipment that require high power and reliability due to the motor's 30 hp rating and 1.25 service factor
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 35.1 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 22.50
- Package Height: 18.00
- Package Weight: 458.00
Product info last updated on January 31, 2026 1:31am UTC
Category: Motors
