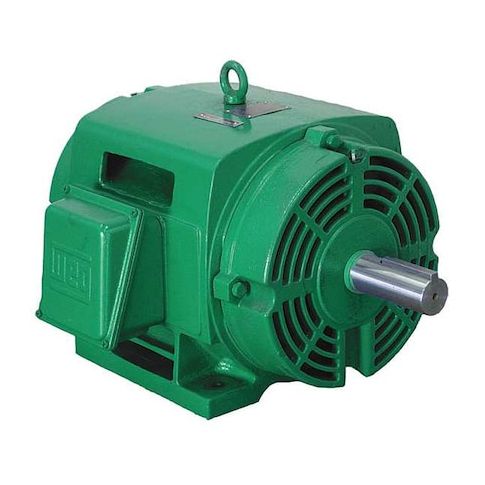

Three-Phase General Purpose Motor, 15 HP, 254T Frame, 575V AC Voltage, 1775 rpm Nameplate RPM MPN:01518OT3H254T
Three-Phase General Purpose Motor, 15 HP, 254T Frame, 575V AC Voltage, 1775 rpm Nameplate RPM
This 15 HP, 254T frame, three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial processes, commercial facilities, and heavy-duty machinery. Its 1775 rpm nameplate speed and 14.9 A full load amps make it suitable for continuous duty operations. The motor's open drip proof enclosure design and cast iron frame ensure durability and reliability in harsh environments. With a service factor of 1.15 and a nominal efficiency of 93%, this motor provides high performance and energy efficiency, making it an ideal choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Three-phase operation
- Open drip-proof motor enclosure design
- Ball motor bearings
Top product applications:
- Pumps and water treatment systems
- Industrial machinery and equipment
- Material handling systems and conveyor belts
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1775 rpm, Frame 254T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 14.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 27.50
- Package Height: 16.80
- Package Weight: 259.00
Product info last updated on February 15, 2026 10:25am UTC
Category: Motors
