Pump Mtr, 3ph, 40hp, 1775, 208-230/460, 324JP MPN:04018OT3E324JP-W40
Pump Mtr, 3ph, 40hp, 1775, 208-230/460, 324JP

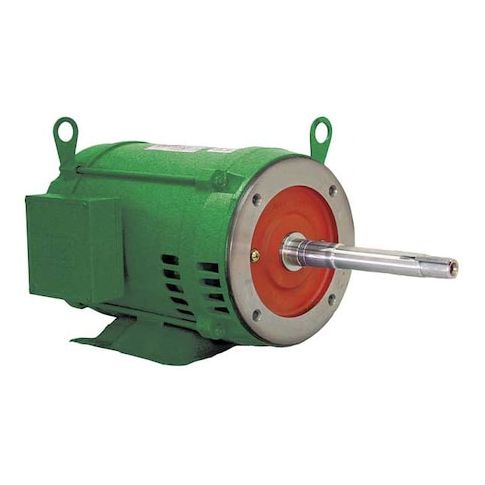

This close-coupled pump motor from Weg is designed for continuous duty cycles and is ideal for use in industrial applications where high horsepower is required. With a 40 horsepower rating and 96.4-91.3/48.2 amps at full load, it is suitable for a wide range of pumps and applications. The motor's inverter-rated design and 1000:1 inverter rating make it compatible with variable frequency drives, while its ball bearings and Class F insulation ensure reliability and longevity. It is available for immediate shipment, making it an excellent choice for industries such as manufacturing, water treatment, and oil and gas.
Top product features:
- Close-coupled design for compact installation
- Three-phase operation for efficient power delivery
- Inverter-rated for reliable performance in variable frequency applications
Top product applications:
- Pump
- Motor
- Inverter
Close-Coupled Pump Motor, Body Dia. 17.8 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 324JP, Hz 60 Hz, Full Load Amps 96.4-91.3/48.2, Height 17 3/4 in, HP 40, HP @ 50Hz 30, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 20 13/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.00
- Package Width: 24.50
- Package Height: 20.00
- Package Weight: 504.00
Product info last updated on February 1, 2026 11:03am UTC
Category: Motors
