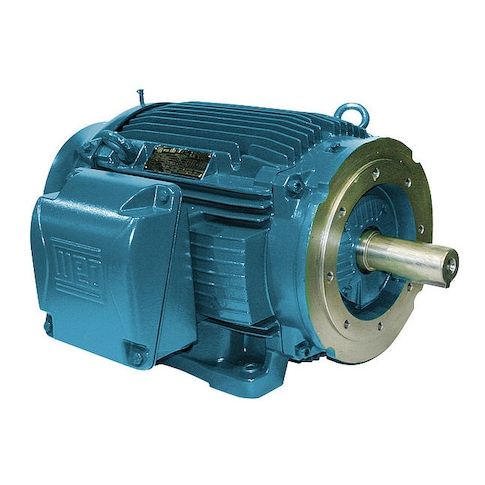

Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:02518ET3E284TC-W22
Three-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM
This 25 HP three-phase general purpose motor is designed for heavy-duty applications, offering high efficiency and reliability. With a nameplate RPM of 1765, it provides a high level of power and performance. The motor's totally enclosed fan cooled design and cast iron frame ensure durability and longevity. Suitable for use in manufacturing, material handling, and other industrial settings, this motor can handle continuous duty cycles with ease. Its high efficiency and robust construction make it an ideal choice for applications where power and reliability are paramount.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and efficient operating environment.
- Ball Motor Bearings ensure smooth and durable operation.
- Continuous Duty capability allows for extended periods of operation without interruption.
Top product applications:
- Pump and Compressor Drives
- Manufacturing and Material Handling Equipment
- Power Generation and Distribution Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 25 HP, Nameplate RPM 1765 rpm, Frame 284TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 59.0/29.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.50
- Package Width: 23.00
- Package Height: 18.00
- Package Weight: 430.00
Product info last updated on February 1, 2026 11:58pm UTC
Category: Motors
