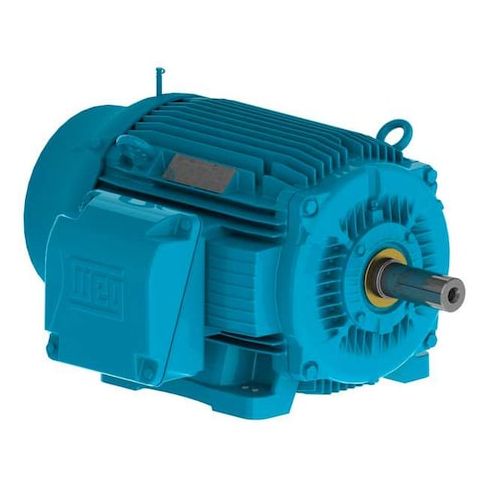

Three-Phase Severe Duty Motor, 40 hp HP, 324T Frame, 460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:04018ST3QIE324T-W22
Three-Phase Severe Duty Motor, 40 hp HP, 324T Frame, 460V AC Voltage, 1, 770 RPM Nameplate RPM
This 40 hp three-phase severe duty motor is designed for high-performance applications requiring continuous operation. Built with a 324T frame and rated for 1,770 RPM, it delivers efficient power in demanding environments. Suitable for use in 460V AC voltage systems, this motor offers a 1.25 service factor and operates within a maximum ambient temperature of 40 degrees C. Its totally enclosed fan-cooled design ensures reliable performance in harsh conditions, making it ideal for industrial applications such as manufacturing, processing, and material handling. Its rugged construction and CW/CCW shaft rotation provide versatility for various mounting configurations.
Top product features:
- Three-Phase Design for High Power Applications
- Totally Enclosed Fan Cooled Enclosure for Dust and Moisture Protection
- Continuous Duty Cycle Capability for Uninterrupted Operation
Top product applications:
- Pump applications due to their high starting torque requirements and ability to handle heavy loads
- Fans and blowers in severe duty applications such as mining and construction
- Heavy industry applications such as textile mills and paper mills due to their ability to handle high power and continuous operation
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 40 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 47.1 A, 324T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 25.00
- Package Height: 19.50
- Package Weight: 540.00
