Severe Duty Motor, Three Phase, 20 hp HP, 1, 765 RPM Nameplate RPM, 460V AC, 256T Frame MPN:02018ST3QIE256T-W22
Severe Duty Motor, Three Phase, 20 hp HP, 1, 765 RPM Nameplate RPM, 460V AC, 256T Frame

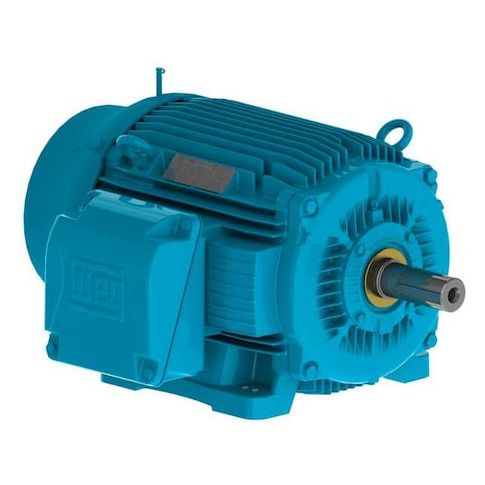

The Weg Severe Duty Motor is a high-performance solution for demanding applications, delivering 20 horsepower at 1,765 RPM. Designed for continuous operation in harsh environments, this three-phase motor features a totally enclosed fan-cooled enclosure and rigid base mounting. With a 1.25 service factor and no thermal protection, it's ideal for use in applications such as oil and gas, mining, and heavy industry. Its compact size and durable construction make it a reliable choice for demanding environments. The motor is also suitable for use in applications requiring a high level of reliability and uptime.
Top product features:
- Three-Phase Motor Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Pumps
- Fans
- Compressors
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 24.1 A, 256T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 29.00
- Package Height: 16.00
- Package Weight: 335.00
