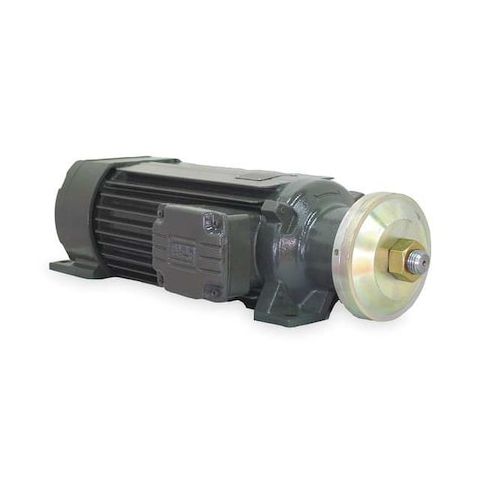

Arbor Motor, 5 HP, 3470 RPM, 208-230/460V MPN:00536ES3ESA80MR
Arbor Motor, 5 HP, 3470 RPM, 208-230/460V
The Arbor Motor from Weg is a reliable and efficient 5 HP, three-phase motor designed for heavy-duty applications. Ideal for use in power tools and industrial equipment, this motor operates at 3470 RPM and can handle continuous duty cycles. With a totally enclosed air-over design and rigid base mounting, it provides protection from dust and debris. The motor's compact size and lightweight design make it easy to integrate into various systems, while its 80M frame and Class F insulation ensure long-lasting performance in demanding environments. Suitable for use in a range of industries, including manufacturing and construction.
Top product features:
- Three-Phase Design
- Totally Enclosed Air-Over Motor Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Woodworking machinery
- Drilling and milling machines
- Pneumatic tools
Power Tool Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,470 RPM, No. of Speeds 1, 208-230/460V AC Voltage, Full Load Amps 14.7-13.3/6.7 A, 80M Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.50
- Package Width: 13.60
- Package Height: 9.40
- Package Weight: 106.00
Product info last updated on February 3, 2026 2:38am UTC
Category: Motors
