Arbor Motor, 10 HP, 3480 RPM, 208-230/460V MPN:01036ES3ESA90LR

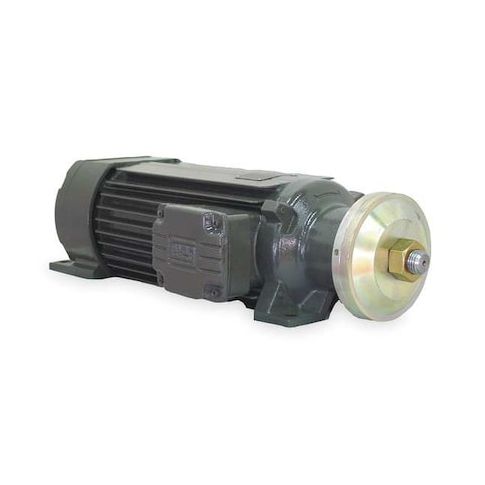

Arbor Motor, 10 HP, 3480 RPM, 208-230/460V
The Arbor Motor from Weg is a powerful and reliable 10 HP, 3-phase motor designed for demanding applications. With a nameplate RPM of 3,480 and a wide voltage range of 208-230/460V, this motor is suitable for use in various industries such as manufacturing, construction, and oil and gas. Its totally enclosed air-over design provides excellent protection against dust and moisture, making it an ideal choice for harsh environments. With a continuous duty cycle and a maximum ambient temperature of 40°C, this motor can operate efficiently and effectively in a variety of applications, including pumps, fans, and compressors.
Top product features:
- Three-phase design
- Totally enclosed air-over motor enclosure
- Continuous duty cycle
Top product applications:
- Pump and compressor drives
- Machine tool drives
- Material handling equipment
Power Tool Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,480 RPM, No. of Speeds 1, 208-230/460V AC Voltage, Full Load Amps 27.2-24.6/12.3 A, 90L Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 14.00
- Package Height: 10.00
- Package Weight: 188.00
