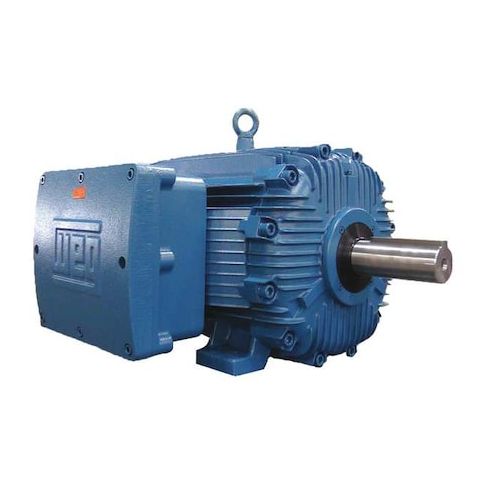

Hazardous Loc Mtr, 3 Ph, TEFC, 10 HP, T4 MPN:01012XT3E256T
Hazardous Loc Mtr, 3 Ph, TEFC, 10 HP, T4
This hazardous location motor is designed for use in environments where explosive gases or dusts are present, meeting Class I and Class II ratings. Its three-phase, totally enclosed fan-cooled design provides reliable operation in temperatures up to 40°C and is suitable for continuous duty cycles. The motor's 10 horsepower rating and 1,175 RPM speed make it ideal for a variety of applications, including industrial processes, manufacturing facilities, and oil and gas operations. Its compact size and durable construction ensure efficient and safe operation in harsh environments.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Pumps and other machinery in hazardous locations such as oil rigs, chemical plants, and refineries
- Industrial equipment in areas where flammable gases or vapors are present, such as paint shops and fueling stations
- Power generation and transmission systems in hazardous locations, such as power plants and substations
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,175 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 26.6/13.3 A, 256T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.30
- Package Width: 29.30
- Package Height: 16.00
- Package Weight: 389.00
Product info last updated on January 29, 2026 6:59pm UTC
Category: Motors
