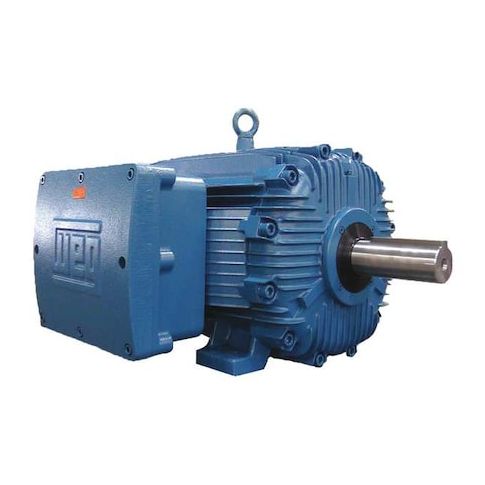

Hazardous Loc Mtr, 3 Ph, TEFC, 25 HP, T4 MPN:02518XT3E284T
Hazardous Loc Mtr, 3 Ph, TEFC, 25 HP, T4
This 25 HP three-phase motor is designed for hazardous locations, meeting Class I, Class II, and Temp. Code T3C requirements. Its totally enclosed fan-cooled design provides reliable operation in harsh environments, while its 1.15 service factor and T-stat thermal protection ensure maximum efficiency and longevity. Suitable for use at 230/460V AC, 208V, and 200V (with limitations), this motor is ideal for applications in industries such as oil and gas, chemical processing, and manufacturing, where safety and reliability are paramount. Its compact size and continuous duty cycle make it a versatile solution for a variety of applications.
Top product features:
- Three-phase operation provides power to the motor.
- Totally Enclosed Fan Cooled (TEFC) design protects the motor from environmental elements.
- The motor is rated for continuous duty cycle operation.
Top product applications:
- Pumps
- Compressors
- Fans
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,775 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 59.8/29.9 A, 284T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 22.50
- Package Height: 20.00
- Package Weight: 489.00
Product info last updated on February 1, 2026 3:23am UTC
Category: Motors
