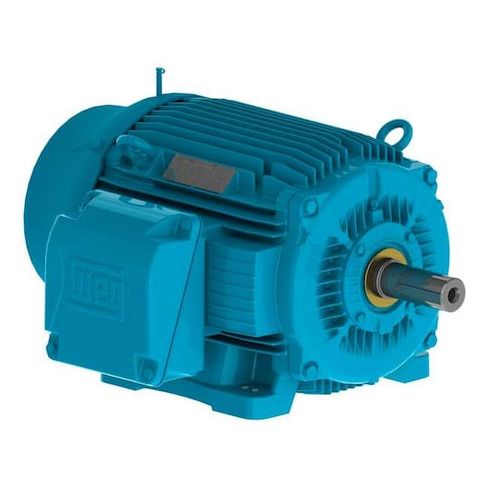

Three-Phase Severe Duty Motor, 30 hp HP, 326T Frame, 460V AC Voltage, 1, 180 RPM Nameplate RPM MPN:03012ST3QIE326T-W22
Three-Phase Severe Duty Motor, 30 hp HP, 326T Frame, 460V AC Voltage, 1, 180 RPM Nameplate RPM
This three-phase severe duty motor is designed for heavy-duty applications, delivering reliable performance in demanding environments. With a 30 hp rating and 1,180 RPM nameplate speed, it's suitable for use in industrial settings, such as manufacturing facilities, power plants, and oil refineries. The motor's totally enclosed fan-cooled design and rigid base mounting ensure efficient cooling and reduced vibration. Its continuous duty cycle and 1.25 service factor make it an ideal choice for applications requiring high torque and long lifespan. Its use at 208V offers flexibility and cost savings, making it a valuable addition to any industrial operation.
Top product features:
- Three-phase operation for efficient power distribution
- Totally Enclosed Fan Cooled design for reliable operation in harsh environments
- Continuous duty cycle for uninterrupted performance in demanding applications
Top product applications:
- Pumps and compressors in chemical processing
- Centrifugal compressors in oil and gas industry
- Centrifugal pumps in power generation
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 35.8 A, 326T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.80
- Package Width: 25.60
- Package Height: 19.50
- Package Weight: 600.00
Product info last updated on January 27, 2026 6:00am UTC
Category: Motors
