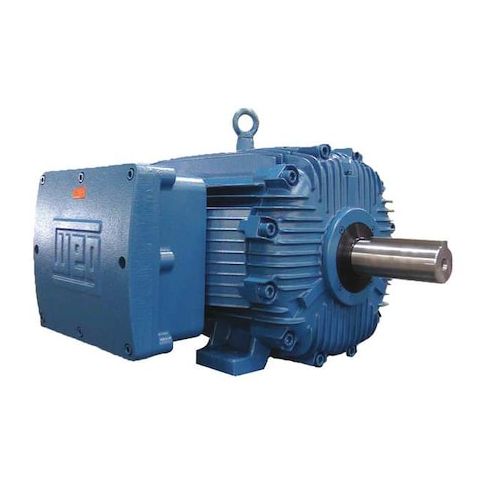

Hazardous Loc Mtr, 3 Ph, TEFC, 25 HP, T4 MPN:02512XT3E324T
Hazardous Loc Mtr, 3 Ph, TEFC, 25 HP, T4
This hazardous location motor is designed for use in environments where flammable gases or dust are present, meeting Class I, Class II, and T3C temperature codes. Its 25 HP, 3-phase design provides reliable power for demanding applications. The motor's totally enclosed fan-cooled (TEFC) design and 1.15 service factor ensure efficient operation in temperatures up to 40°C. Suitable for continuous duty cycles, this motor is ideal for use in oil and gas, chemical processing, and other industries where hazardous environments are a concern. Its compact size and durable construction make it a reliable choice for a variety of applications.
Top product features:
- Totally Enclosed Fan Cooled design allows for efficient heat dissipation and reduced maintenance.
- Three-Phase motor design enables high power output and efficient operation.
- Motor Thermal Protection with T-Stat ensures safe and reliable operation in hazardous locations.
Top product applications:
- Industrial process control systems
- Heavy-duty manufacturing equipment
- Oil and gas refineries and extraction sites
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 61.6/30.8 A, 324T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.80
- Package Width: 25.20
- Package Height: 19.80
- Package Weight: 660.00
Product info last updated on January 20, 2026 1:00am UTC
Category: Motors
