Pump Mtr, 3ph, 50hp, 1775, 208-230/460, 326JP MPN:05018OT3E326JP-W40
Pump Mtr, 3ph, 50hp, 1775, 208-230/460, 326JP

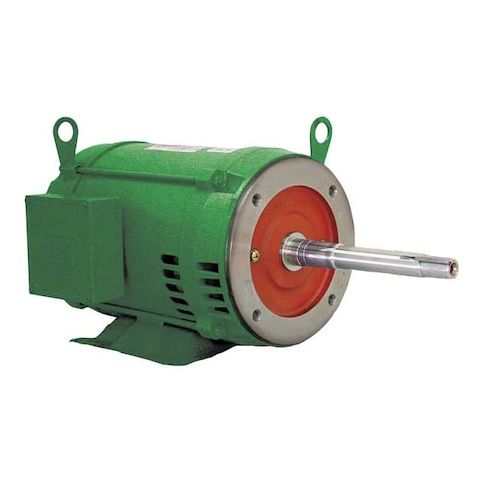

This 50 horsepower, three-phase close-coupled pump motor from Weg is designed for continuous duty cycles in demanding applications. With a robust frame size and high-torque output, it's ideal for use in industrial pumping systems, water treatment facilities, and other high-pressure environments. The motor's inverter-rated design ensures efficient operation and a long lifespan, while its ball bearings provide smooth and quiet operation. The 326JP motor is also UL-rated and meets a variety of international safety standards. Its compact design and high-power output make it a versatile and reliable solution for a range of industrial and commercial applications.
Top product features:
- Close-coupled design for reduced installation time and space requirements
- Three-phase operation for efficient power distribution
- Inverter-rated for use in variable frequency drive applications
Top product applications:
- Pump
- Motor
- Inverter
Close-Coupled Pump Motor, Body Dia. 17.8 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 326JP, Hz 60 Hz, Full Load Amps 110.5-122.8/61.4, Height 17 3/4 in, HP 50, HP @ 50Hz 40, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 22 5/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 20.00
- Package Height: 16.00
- Package Weight: 270.00
Product info last updated on January 14, 2026 12:21pm UTC
Category: Motors
