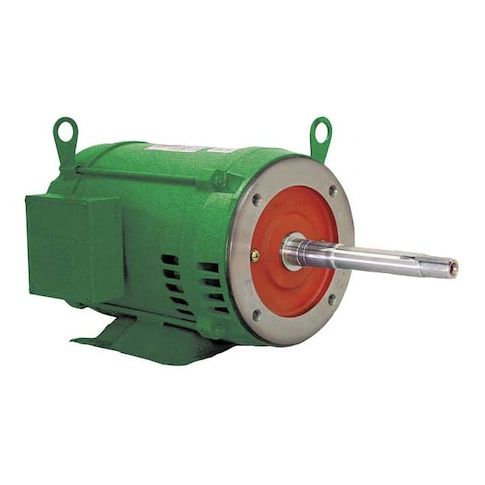

Pump Mtr, 3ph, 25hp, 1770, 208-230/460, 284JP MPN:02518OT3E284JP-W40
Pump Mtr, 3ph, 25hp, 1770, 208-230/460, 284JP
This 25 horsepower, three-phase pump motor is designed for continuous duty and features a close-coupled design for efficient operation. Suitable for use in a variety of applications, including industrial and commercial settings, it can handle demanding tasks with ease. With a high inverter rating of 1000:1, it can be used with inverters to optimize performance and efficiency. Its durable construction and ball bearings ensure long lifespan and reliability. The motor is also designed for use in high-temperature environments up to 40 degrees C, making it an ideal choice for applications in hot or humid conditions.
Top product features:
- Close-coupled design for compact installation
- Ball bearings for smooth and reliable operation
- Inverter-rated for use in variable frequency drive applications
Top product applications:
- Pump
- Inverter
- Motor
Close-Coupled Pump Motor, Body Dia. 15.7 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 284JP, Hz 60 Hz, Full Load Amps 53.8-59.8/29.9, Height 15 3/4 in, HP 25, HP @ 50Hz 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 18 13/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 36.50
- Package Height: 18.00
- Package Weight: 402.00
Product info last updated on February 14, 2026 5:27am UTC
Category: Motors
