Pump Mtr, 3ph, 40hp, 3535, 208-230/460, 286JP MPN:04036OT3E286JP-W40
Pump Mtr, 3ph, 40hp, 3535, 208-230/460, 286JP

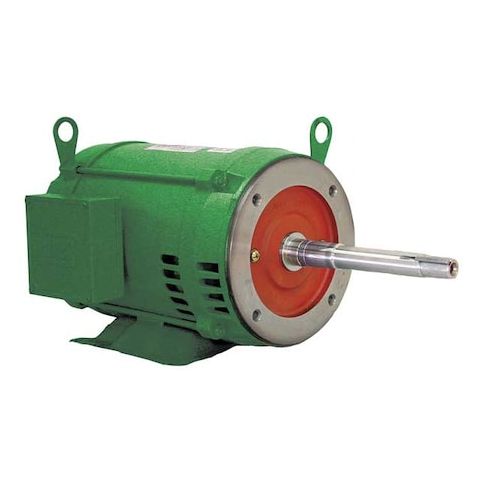

This 40 horsepower, three-phase pump motor from Weg is designed for continuous duty cycles and features a close-coupled design for efficient operation. With a wide range of voltage options and a high power factor, it's ideal for applications such as water treatment, wastewater management, and chemical processing. The motor's inverter rating and ball bearings ensure reliable performance and long lifespan. Its compact size and durable construction make it a versatile choice for a variety of industrial settings, including those with limited space or high ambient temperatures.
Top product features:
- Close-coupled design for easy installation and reduced space requirements
- Ball bearings for smooth and quiet operation
- Inverter-rated for use with variable frequency drives and high efficiency performance
Top product applications:
- Pump
- Motor Bearings Ball
- Motor Application Pump
Close-Coupled Pump Motor, Body Dia. 15.7 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 286JP, Hz 60 Hz, Full Load Amps 84.8-94.2/47.1, Height 15 3/4 in, HP 40, HP @ 50Hz 30, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 20 5/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.22
- Package Width: 22.52
- Package Height: 17.80
- Package Weight: 415.00
Product info last updated on January 16, 2026 10:24am UTC
Category: Motors
