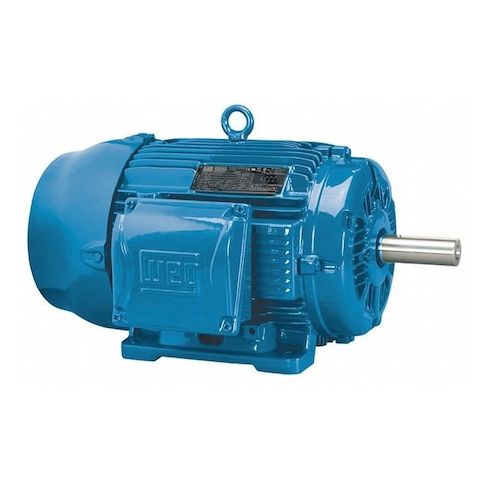

Three-Phase General Purpose Motor, 5 HP, 215T Frame, 230/460V AC Voltage, 1200 Nameplate RPM MPN:00512ET3E215T-W22
The Weg 5 HP Three-Phase General Purpose Motor is a reliable and efficient solution for a wide range of industrial applications. Suitable for continuous duty, this motor features a totally enclosed fan cooled design, rigid base mounting, and ball bearings for smooth operation. With a high efficiency rating of 89.5% and a service factor of 1.25, this motor can handle demanding tasks while minimizing energy consumption. Its compact 215T frame and CE, CSA, NOM, and UL certifications make it an ideal choice for use in a variety of settings, including manufacturing, processing, and material handling facilities.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial Pumping Systems
- Manufacturing Machinery
- Water Treatment Plants
The WEG - 00512ET3E215T-W22 is a General Purpose Motor that falls under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy, making it suitable for various industrial and commercial applications such as power transmission and pneumatics. Its versatility allows it to be used across different sectors including manufacturing lines and HVAC systems.
Key Features of the WEG - 00512ET3E215T-W22 General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor is designed for continuous operation within specified parameters. The need for rest periods may vary based on usage and environmental conditions.
- Frame: The frame size of 215T conforms to standard specifications ensuring compatibility with various machinery setups.
- Full Load Amps: At full capacity, this motor draws a maximum current of 6.83 amps which determines power supply requirements for safe operation.
- NEMA Premium(R) Rated: This designation signifies that during testing, the product met criteria associated with NEMA's definition of 'Premium' regarding energy efficiency and environmental impact. It does not guarantee future performance or imply any particular lifespan.
- Horsepower (HP): The output power rating of this motor is listed as being capable of producing up to approximately five horsepower under ideal operating conditions. Actual performance may vary depending on specific use case scenarios and environmental factors.
- Motor Enclosure Design: TEFC (Totally Enclosed Fan Cooled) design protects internal components from dust, water damage while providing efficient cooling methods
- Voltage Compatibility: This motor is rated for operation within the specified voltage ranges of 200-230/440V AC to 208-220/440V AC up to 208-230/460V AC or even at straight-up single voltages like the common household level of just plain 230/460V AC.
- Weight: Weighing 171 lb, the physical mass of this motor can impact its installation process and compatibility with certain machinery setups.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 170.00
