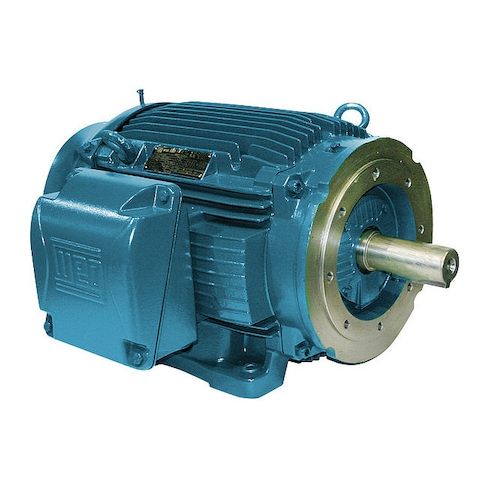

Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3600 Nameplate RPM MPN:01036ET3E215TC-W22
Three-Phase General Purpose Motor, 10 HP, 215TC Frame, 230/460V AC Voltage, 3600 Nameplate RPM
This 10 HP, three-phase general purpose motor from Weg is designed for a wide range of industrial applications. Suitable for use in harsh environments, its totally enclosed fan cooled motor enclosure protects against dust and moisture. With a rigid base and C-face motor mounting type, it provides a stable and secure installation. The motor's high efficiency and continuous duty rating make it ideal for applications where high torque and reliability are required, such as in conveyor systems, pumps, and fans. Its compact size and lightweight design also make it easy to integrate into existing systems.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pump and fan drives
- Industrial machinery
- Conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 3510 rpm, Frame 215TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.2/11.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 165.00
Product info last updated on March 26, 2026 4:40am UTC
Category: Motors
