Pump Mtr, 3ph, 20hp, 1775, 208-230/460, 256JM MPN:02018OT3E256JM-W40

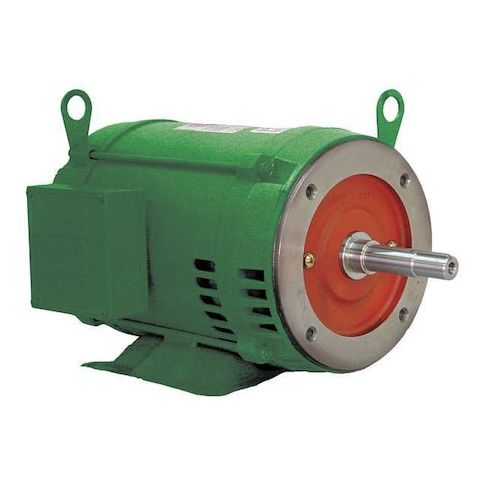

Pump Mtr, 3ph, 20hp, 1775, 208-230/460, 256JM
The Weg 256JM 20hp 3-phase close-coupled pump motor is a reliable and efficient solution for various industrial applications, including pumping systems and machinery. This motor features a continuous duty cycle, making it suitable for demanding operations. Its compact design and ball bearings ensure smooth operation and minimal maintenance. With a wide range of voltage options and an inverter rating of 1000:1, this motor can be easily integrated into existing systems. Its compact size and rugged construction make it ideal for use in harsh environments, providing years of reliable service and contributing to reduced downtime and increased productivity.
Top product features:
- Close-Coupled design allows for efficient and compact installation
- Ball bearings provide long-lasting and reliable motor operation
- Inverter Rated for high-efficiency operation in variable frequency applications
Top product applications:
- Pump
- Inverter Duty
- Continuous Duty
Close-Coupled Pump Motor, Body Dia. 12.9 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 256JM, Hz 60 Hz, Full Load Amps 55.3-50.0/25.0, Height 14 3/8 in, HP 20, HP @ 50Hz 15, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 19 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 29.30
- Package Height: 16.60
- Package Weight: 299.00
Product info last updated on February 22, 2026 9:22am UTC
Category: Motors
