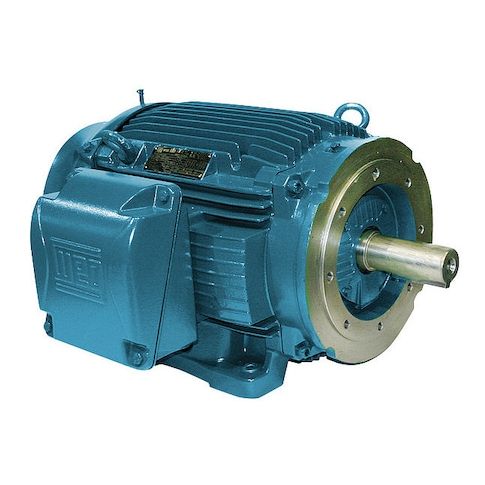

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 1800 Nameplate RPM MPN:00318ET3E182TC-W22
This 3 HP three-phase general purpose motor is designed for continuous duty in a wide range of industrial applications. Its totally enclosed fan cooled design and rigid base provide reliable operation in harsh environments, while its 89.5% nominal efficiency helps reduce energy costs. Suitable for use in manufacturing, material handling, and other heavy-duty applications, this motor can withstand temperatures up to 40°C and features a cast iron frame for added durability. Its CW/CCW motor shaft rotation and 1.25 service factor make it a versatile choice for applications requiring high torque and reliability.
Top product features:
- Three-Phase Operation for efficient power usage
- Totally Enclosed Fan Cooled Motor Enclosure for reduced noise and increased durability
- Ball Motor Bearings for smooth and quiet operation
Top product applications:
- Pumps and Compressors
- Fans and Blowers
- Conveyors and Material Handling Systems
The WEG - 00318ET3E182TC-W22 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery across various sectors, including manufacturing lines and HVAC systems.
Key Features of the WEG - 00318ET3E182TC-W22 General Purpose Motor:
- CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: The motor has a continuous duty cycle, which is used to describe its operation under normal conditions.
- Frame: The frame size conforms to standard specifications for compatibility with various equipment setups.
- Inverter Rated: This motor is compatible with variable frequency drives for potential control over speed and torque.
- NEMA Premium(R) Rated: Recognized for meeting specific environmental and energy efficiency standards.
- Horsepower (HP): The motor has a power output of 3 HP, suitable for use in various industrial applications based on user requirements.
- Motor Enclosure Design: TEFC construction protects internal components from environmental factors while determining its cooling method
- Motor Service Factor: It features a service factor of 1.25, which provides information about the overload capacity under specified conditions.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.50
- Package Height: 12.50
- Package Weight: 90.00
