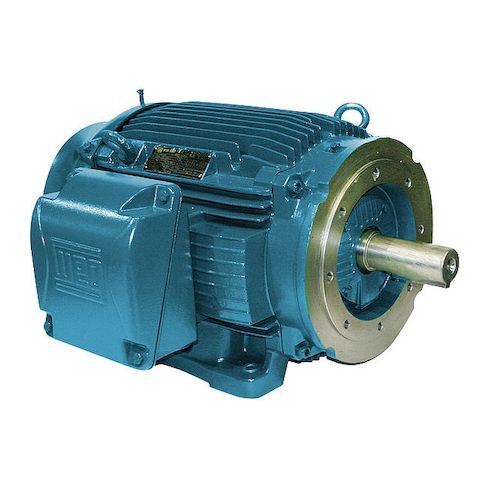

Three-Phase General Purpose Motor, 30 HP, 286TSC Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM MPN:03036ET3E286TSC-W22
Three-Phase General Purpose Motor, 30 HP, 286TSC Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM
This 30 HP three-phase general purpose motor is designed for heavy-duty applications, providing reliable and efficient performance in a variety of industries. With a totally enclosed fan cooled design and cast iron frame, it can withstand harsh environments and operate at high temperatures. Suitable for continuous duty, this motor is ideal for use in manufacturing, mining, and other demanding settings where high power and efficiency are required. Its high efficiency rating of 91.7% and robust construction make it a reliable choice for applications such as pumps, conveyors, and other heavy machinery.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 3535 rpm, Frame 286TSC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 67.6/33.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.50
- Package Width: 22.80
- Package Height: 18.00
- Package Weight: 406.00
Product info last updated on January 14, 2026 10:55am UTC
Category: Motors
