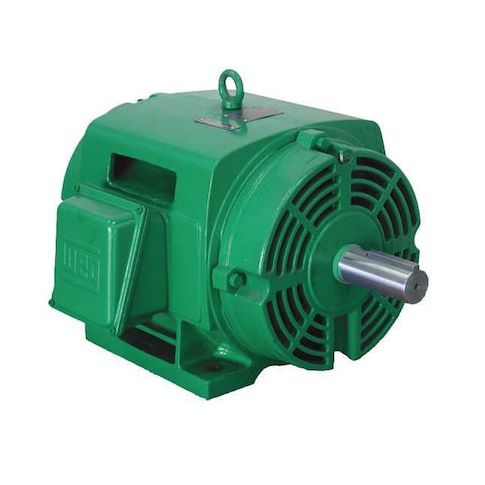

Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM MPN:04018OT3E324T-W40
Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM
This 40 HP three-phase general purpose motor is designed for heavy-duty applications, providing reliable and efficient operation. With a nameplate RPM of 1775 and a nominal efficiency of 94.1%, this motor is ideal for continuous duty applications such as industrial processing, manufacturing, and material handling. The open drip-proof enclosure design and rigid base motor mounting ensure durability and stability, while the ball bearings and cast iron frame provide long-lasting performance. Suitable for use in environments up to 40°C, this motor meets CE, CSA, and UL standards, making it a reliable choice for a wide range of industrial applications.
Top product features:
- Three-Phase AC Voltage Support
- Continuous Duty Operation
- Ball Motor Bearings for Smooth Rotation
Top product applications:
- Industrial Pump Applications
- High-Pressure Water Jetting Systems
- Large HVAC Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 1775 rpm, Frame 324T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 95.2/47.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.89
- Package Width: 22.52
- Package Height: 19.37
- Package Weight: 574.00
Product info last updated on January 23, 2026 8:48am UTC
Category: Motors
