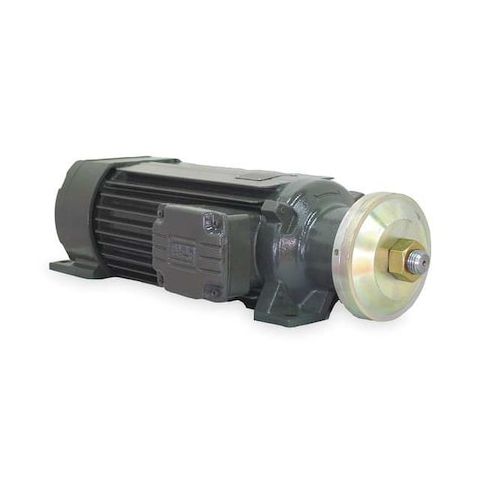

Arbor Motor, 3 HP, 3500 RPM, 208-230/460V MPN:00336ES3ESA80SR
Arbor Motor, 3 HP, 3500 RPM, 208-230/460V
This high-performance 3 HP three-phase motor from Weg is designed for demanding applications that require continuous operation. With a 3500 RPM rating and a wide voltage range of 208-230/460V, it provides flexibility and reliability in various industrial settings. Its rigid base mounting and totally enclosed air-over design ensure durability and protection from environmental factors. Suitable for use in power tools, manufacturing equipment, and other high-torque applications, this motor offers efficient operation and long lifespan, making it an ideal choice for industries that require high-speed and high-torque performance.
Top product features:
- Three-phase design provides a stable power supply for demanding applications.
- The motor operates at a high speed of 3,500 RPM for efficient performance.
- The totally enclosed air-over design protects the motor from environmental hazards.
Top product applications:
- Power tools such as drills, saws, and sanders
- Industrial machinery such as conveyor belts, pumps, and fans
- Material handling equipment such as forklifts and hoists
Power Tool Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, 208-230/460V AC Voltage, Full Load Amps 9.5-8.6/4.3 A, 80S Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 22.60
- Package Height: 9.50
- Package Weight: 91.00
Product info last updated on February 7, 2026 12:36am UTC
Category: Motors
