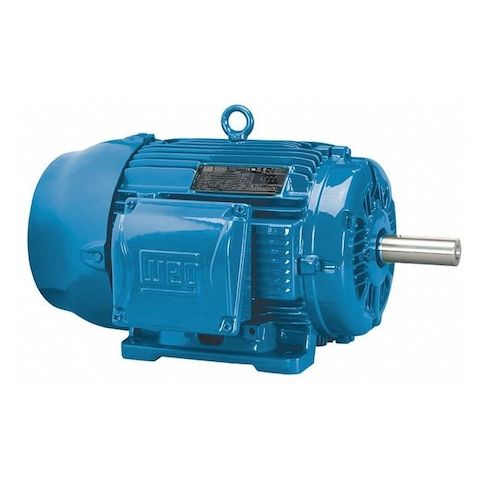

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:02018ET3E256T-W22
This 20 HP three-phase general purpose motor is designed for heavy-duty applications, providing reliable and efficient performance in a wide range of industries. With a totally enclosed fan cooled motor enclosure and rigid base mounting, it can operate in harsh environments and withstand demanding conditions. The motor's high efficiency and continuous duty rating make it ideal for applications such as pumps, fans, and compressors in manufacturing, oil and gas, and other industries. Its compact design and CE, CSA, NOM, and UL certifications ensure compliance with international safety standards, making it a reliable choice for industrial and commercial use.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reduced noise and increased durability
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Pumping Systems
- Centrifugal Pumps
- High-Torque Industrial Fans
The WEG - 02018ET3E256T-W22 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy, making it suitable for various industrial and commercial applications such as power transmission and pneumatics. Its versatility allows it to be used across different sectors including manufacturing lines and HVAC systems.
Key Features of the WEG - 02018ET3E256T-W22 General Purpose Motor:
- CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for tracking this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: Intended for continuous operation, based on its design and specifications.
- Frame: The structural component that houses internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: Has a maximum current draw of 48.2/24.1 A under full load conditions, which is important to consider when planning power supply requirements.
- NEMA Premium(R) Rated: Acknowledged as meeting certain environmental and energy efficiency standards making it an eco-friendly choice in industry settings.
- Horsepower (HP): The motor has a rated output of 20 HP, making it suitable for use in various industrial applications according to the manufacturer's guidelines.
- Motor Enclosure Design: Totally enclosed fan-cooled design protects internal components from environmental factors while also determining its cooling method
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 29.50
- Package Height: 16.00
- Package Weight: 332.00
