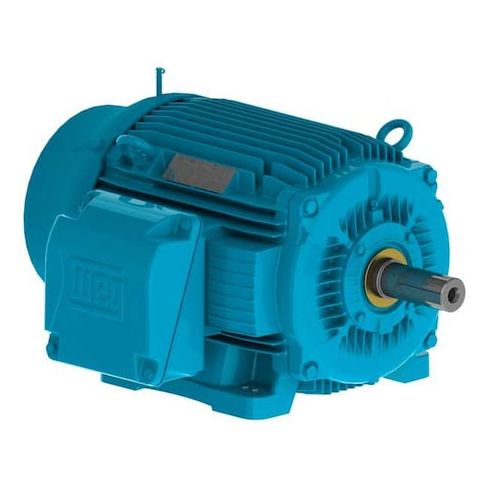

Severe Duty Motor, Three Phase, 10 hp HP, 1, 180 RPM Nameplate RPM, 460V AC, 256T Frame MPN:01012ST3QIE256T-W22
Severe Duty Motor, Three Phase, 10 hp HP, 1, 180 RPM Nameplate RPM, 460V AC, 256T Frame
This severe duty motor is designed for demanding applications requiring high reliability and performance. With a 10 hp rating and 1,180 RPM, it's ideal for use in heavy industry, manufacturing, and process control environments. The totally enclosed fan-cooled design and NEMA Design B rating ensure efficient operation in extreme temperatures. Its continuous duty cycle and rigid base mounting make it suitable for applications such as pumps, fans, and conveyor systems. With a service factor of 1.25, this motor provides extra power and flexibility, making it a reliable choice for applications that demand high performance and uptime.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Continuous duty cycle for operation in demanding applications
- Motor Service Factor of 1.25 for increased capacity and reliability
Top product applications:
- High-torque applications such as conveyor belts and heavy-duty pumps
- Heavy-duty industrial machinery such as textile machinery and printing presses
- Oil and gas industry equipment such as drilling rigs and pumps
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,180 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 12.9 A, 256T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 20.50
- Package Height: 16.00
- Package Weight: 320.00
Product info last updated on March 21, 2026 3:41pm UTC
Category: Motors
