Air Compressor Motor, 3 HP, Frame 56 MPN:12882732

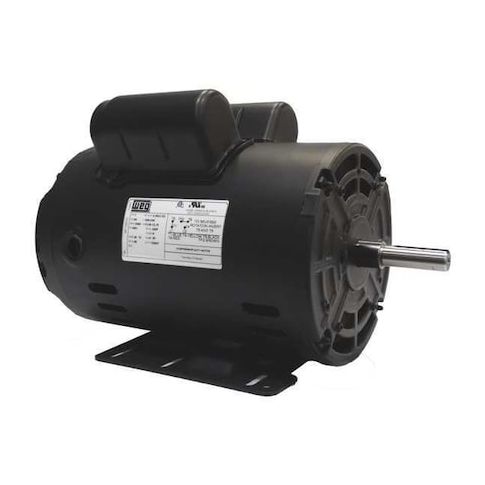

Air Compressor Motor, 3 HP, Frame 56
The Weg Air Compressor Motor is a reliable and efficient solution for various industrial applications. Designed for continuous operation, this 3 HP motor features a capacitor-start/run design and operates at 3,480 RPM. Suitable for use in air compressors, it provides a single-phase power supply and can handle a maximum ambient temperature of 40°C. Its rugged steel frame and open drip-proof enclosure ensure durability and protection. Ideal for applications such as manufacturing, construction, and oil and gas, this motor offers a cost-effective and reliable solution for meeting the demands of heavy-duty air compression.
Top product features:
- It has a single-phase motor design with capacitor-start/run functionality.
- It operates at a maximum ambient temperature of 40 degrees C.
- It has an open drip-proof motor enclosure design.
Top product applications:
- Air Compressor Motor, 3 HP, Frame 56 from Weg can be used in a small industrial setting for powering a single air compressor unit.
- Air Compressor Motor, 3 HP, Frame 56 from Weg can be used in a light manufacturing environment for powering a small air compressor used for tasks such as cleaning and dust removal.
- Air Compressor Motor, 3 HP, Frame 56 from Weg can be used in a commercial setting for powering a small air compressor used for tasks such as powering pneumatic tools and equipment.
Air Compressor Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 3,480 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 13.9 A, 56H Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 8.50
- Package Height: 10.50
- Package Weight: 30.00
Product info last updated on March 22, 2026 9:04am UTC
Category: Motors
