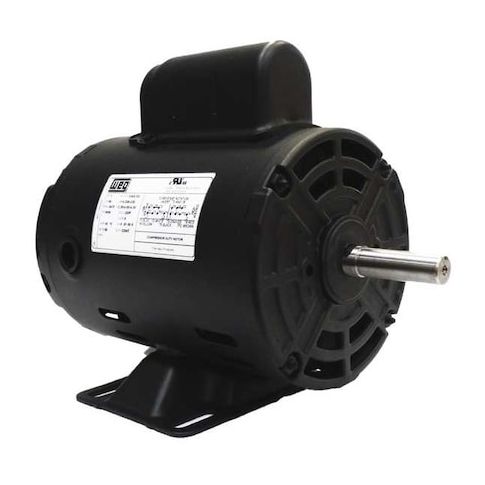

Air Compressor Motor, 1-1/2 HP, Frame 56 MPN:13589373
Air Compressor Motor, 1-1/2 HP, Frame 56
This 1-1/2 HP air compressor motor from Weg is a reliable and efficient solution for a variety of industrial applications. Designed for continuous duty, it features a capacitor-start motor design and operates at 3,490 RPM. The motor is suitable for use in air compressors, pneumatic tools, and other equipment that requires a high level of power and reliability. Its open drip-proof enclosure and rigid base mounting provide excellent protection against dust and moisture, making it ideal for use in harsh environments. With a maximum ambient temperature of 40°C, this motor can handle demanding applications with ease.
Top product features:
- Single Phase operation allows for a simple and cost-effective installation
- Capacitor-Start motor design provides efficient and reliable operation
- Continuous duty cycle enables consistent and uninterrupted performance
Top product applications:
- Garage Air Compressor for Small Shops
- Industrial Air Compressor for Construction Sites
- Automotive Air Compressor for Repair Shops
Air Compressor Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.1 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 8.50
- Package Height: 10.30
- Package Weight: 29.00
Product info last updated on January 30, 2026 4:33pm UTC
Category: Motors
