Three-Phase General Purpose Motor, 20 HP, 230/460V AC Voltage, 286T Frame, 1180 rpm Nameplate RPM MPN:02012EG3E286T-W22

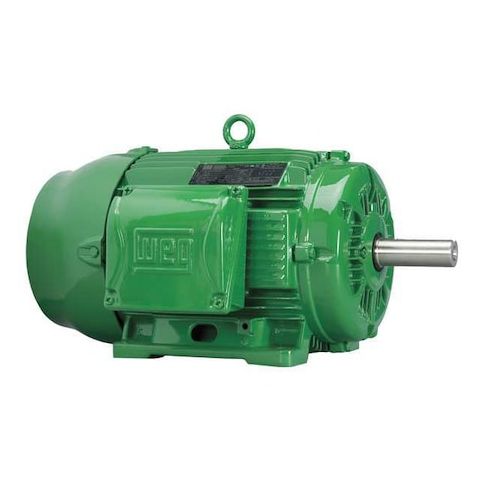

Three-Phase General Purpose Motor, 20 HP, 230/460V AC Voltage, 286T Frame, 1180 rpm Nameplate RPM
The Weg 20 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. Suitable for continuous duty, this motor can handle demanding tasks with ease, providing a high level of performance and efficiency. With a nameplate RPM of 1180 and a nominal efficiency of 93%, this motor is designed to minimize energy consumption and maximize productivity. Its totally enclosed fan cooled design and rigid base mounting type make it ideal for use in factories, warehouses, and other industrial settings where reliability and durability are paramount.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Pump
- Material Handling Equipment
- Textile Machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1180 rpm, Frame 286T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.8/24.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1,101-1,200, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.30
- Package Width: 22.50
- Package Height: 17.80
- Package Weight: 501.00
Product info last updated on January 31, 2026 4:08pm UTC
Category: Motors
