Three-Phase Severe Duty Motor, 400 hp HP, 460V AC Voltage, 447-9T Frame, 1, 785 RPM Nameplate RPM MPN:40018ST3QIE449T-W22
Three-Phase Severe Duty Motor, 400 hp HP, 460V AC Voltage, 447-9T Frame, 1, 785 RPM Nameplate RPM

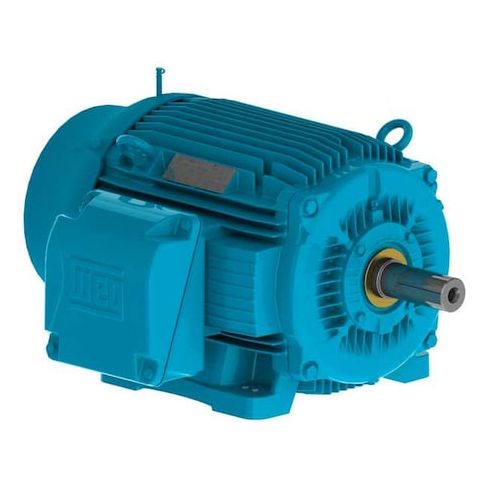

This Weg Three-Phase Severe Duty Motor is designed for heavy-duty applications requiring continuous operation. With a 400 hp rating and 1,785 RPM, it's ideal for use in industrial settings such as manufacturing, oil and gas, and mining. The motor's severe duty design ensures reliability and longevity, even in extreme temperatures and environments. Its totally enclosed fan-cooled design and rigid base mounting provide added protection and stability. This motor is perfect for applications where high torque and power are required, such as pumps, compressors, and conveyor systems. Its 75-day lead time and drop ship eligibility make it a convenient choice.
Top product features:
- Three-Phase design for efficient power distribution
- Totally Enclosed Fan Cooled design for reliable operation in harsh environments
- Continuous Duty Cycle for uninterrupted performance in demanding applications
Top product applications:
- High-speed manufacturing lines
- Heavy-duty industrial pumps
- Large-scale mining operations
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 400 hp HP, Nameplate RPM 1,785 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 445.0 A, 447-9T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 75 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 57.10
- Package Width: 42.20
- Package Height: 37.30
- Package Weight: 3467.00
Product info last updated on January 14, 2026 9:42am UTC
Category: Motors
