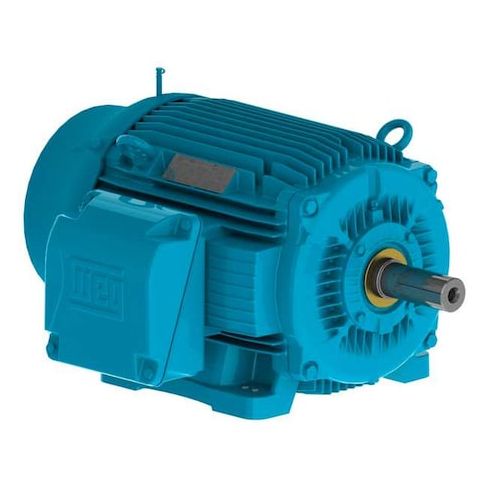

Three-Phase Severe Duty Motor, 400 hp HP, 460V AC Voltage, 447-9T Frame, 1, 785 RPM Nameplate RPM MPN:40018ST3QIERB449T-W2
Three-Phase Severe Duty Motor, 400 hp HP, 460V AC Voltage, 447-9T Frame, 1, 785 RPM Nameplate RPM
This Three-Phase Severe Duty Motor from Weg is designed for high-performance applications requiring continuous operation. With a robust 400 hp rating and 1,785 RPM nameplate speed, it's perfect for demanding industrial processes. Its totally enclosed fan-cooled design and NEMA Design B rating ensure reliable operation in harsh environments. Suitable for use in applications such as heavy industry, manufacturing, and oil and gas, this motor provides a high service factor and can operate at 208V. Its compact 447-9T frame and rigid base design make it easy to integrate into existing systems, providing a reliable and efficient solution for severe duty applications.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan cooled enclosure for reduced noise and improved reliability
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Heavy Industry Process Pumps
- High-Torque Applications such as Oil and Gas Drilling Rigs
- Power Generation and Power Distribution Systems
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 400 hp HP, Nameplate RPM 1,785 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 445.0 A, 447-9T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 75 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 57.10
- Package Width: 42.20
- Package Height: 37.30
- Package Weight: 3467.00
Product info last updated on January 30, 2026 11:07pm UTC
Category: Motors
