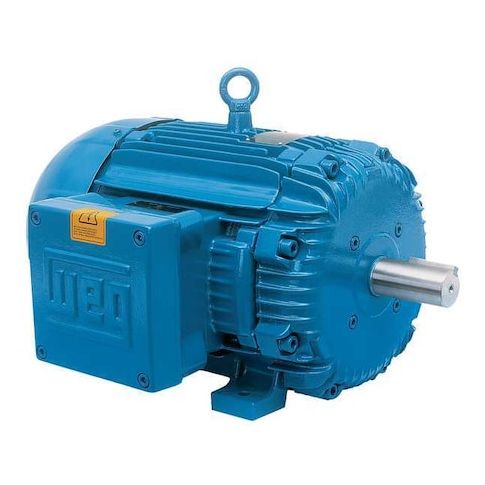

Hazardous Loc Mtr, 3 Ph, TEFC, 200 HP, T3C MPN:20036XT3G447TS
Hazardous Loc Mtr, 3 Ph, TEFC, 200 HP, T3C
This hazardous location motor is designed for use in areas where explosive gases or dust are present, meeting Class I, Class II, and T3C temperature code requirements. With a 200 hp rating and 3,570 RPM, it provides reliable power for demanding applications. The motor's totally enclosed fan-cooled design and 1.15 service factor ensure efficient operation in temperatures up to 40°C. Suitable for continuous duty cycles, it is ideal for use in oil and gas refineries, chemical plants, and other industries where hazardous locations are a concern. Its compact size and customizable options make it a versatile solution for various applications.
Top product features:
- Three-phase design
- Totally Enclosed Fan Cooled (TEFC) enclosure
- Continuous duty cycle
Top product applications:
- Industrial Food Processing
- Oil and Gas Refining
- Chemical Plant Operations
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 200 hp HP, Nameplate RPM 3,570 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 221.0 A, 447TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 66.93
- Package Width: 43.30
- Package Height: 37.40
- Package Weight: 2656.00
Product info last updated on February 20, 2026 9:30am UTC
Category: Motors
