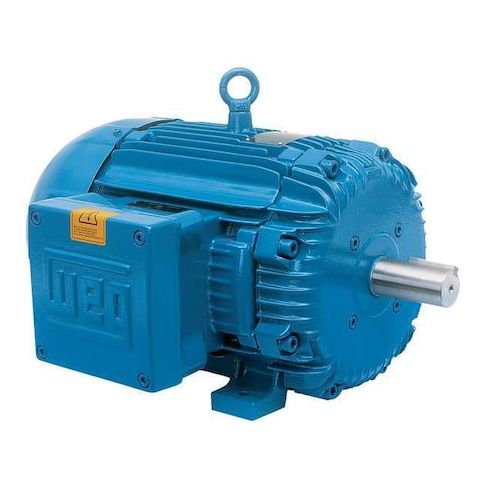

Hazardous Loc Mtr, 3 Ph, TEFC, 200 HP, T3C MPN:20012XT3G447T
Hazardous Loc Mtr, 3 Ph, TEFC, 200 HP, T3C
This 200 HP hazardous location motor is designed for use in areas where explosive gases or dusts are present, meeting Class I, Class II, and T3C temperature codes. With a three-phase design and totally enclosed fan-cooled (TEFC) enclosure, it provides reliable operation in harsh environments. Its 1,190 RPM speed and 249 A full-load current make it suitable for a variety of applications, including industrial processes and manufacturing facilities. The motor's continuous duty cycle and 1.15 service factor ensure efficient operation, while its thermal protection and Class F insulation provide added safety and reliability.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Thermal Protection with T-Stat
Top product applications:
- High-rise building elevator
- Oil and gas industry equipment
- Power generation and transmission facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 200 hp HP, Nameplate RPM 1,190 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 249.0 A, 447T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 66.93
- Package Width: 43.30
- Package Height: 37.40
- Package Weight: 2812.00
Product info last updated on March 20, 2026 12:45am UTC
Category: Motors
