Elbow, Steel, Comp. 1 in, MNPT 1 1/4 in MPN:7405X16X16

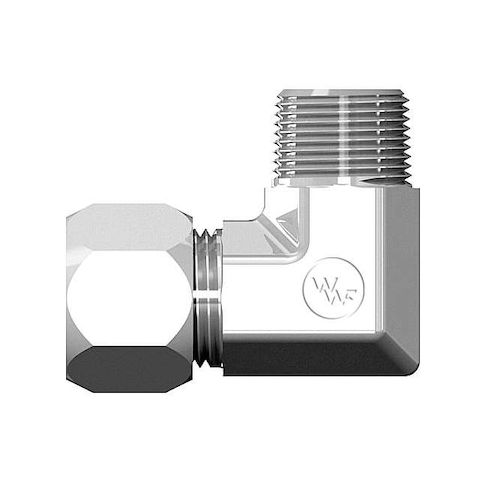

Elbow, Steel, Comp. 1 in, MNPT 1 1/4 in
This steel compression fitting elbow is designed for use in hydraulic applications, providing a reliable connection between tubes and pipes. With a maximum operating pressure of 2,400 psi and temperature of 450°F, it can withstand demanding conditions. The 1-inch tube outer diameter and 1 1/4-inch MNPT connection make it suitable for a variety of industries, including manufacturing, oil and gas, and construction. Compatible with popular brands like Air-Way and Parker, this fitting is a versatile solution for professionals seeking high-performance connections. It can be used in applications such as hydraulic systems, pneumatic systems, and more.
Top product features:
- Compression fitting allows for easy connection and disconnection of hydraulic lines.
- Zinc trivalent coating provides corrosion resistance to the fitting.
- Steel construction enables the fitting to withstand high operating pressures up to 2,400 psi.
Top product applications:
- Hydraulics
- Hydraulic systems require specialized fittings to handle high-pressure fluids and gases. This elbow fitting is designed for use in hydraulic systems, providing a reliable connection point for hydraulic lines.
- Hydraulic cylinders and pumps
Compression Fitting Elbow, Application Hydraulics, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Finish/Coating Zinc Trivalent, Fitting Material Steel, Fitting Side A Tube Outer Diameter 1 in, Material Grade 1045, 12L14, Maximum Operating Pressure 2,400 psi, Maximum Operating Temperature 450 Degrees F, Overall Length 1 23/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1 in, Compatible Fitting Brands Air-Way, Parker
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 2.00
- Package Weight: 0.94
Product info last updated on February 27, 2026 10:46am UTC
Category: Pipes, Valves and Fittings
