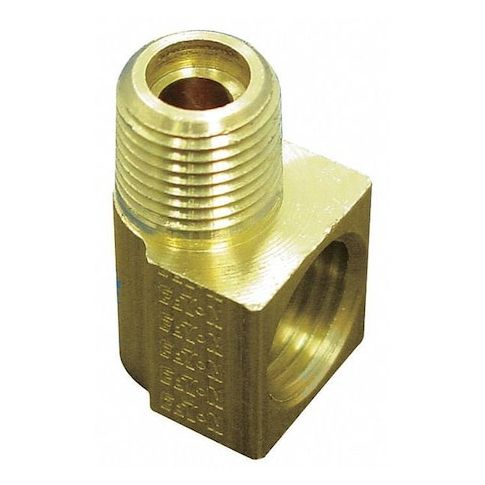

1/2" Brass 90 Degree Elbow MPN:402X8X8
1/2" Brass 90 Degree Elbow
The Weatherhead 1/2in Brass 90 Degree Elbow is a versatile and reliable flared fitting designed for hydraulic applications. Its 45-degree flare angle ensures a secure connection, while the inverted flare on side A and MNPT on side B provide a leak-free seal. With a maximum operating pressure of 2,000 psi and temperature of 250°F, this elbow is suitable for high-pressure hydraulic systems. Its compact size and ease of installation make it ideal for use in aerospace, marine, and industrial applications, where reliability and performance are paramount.
Top product features:
- Flared Fitting Elbow provides a secure connection for hydraulic systems.
- Inverted Flare connection type on one side allows for a reliable connection to a tube.
- 45 Degree flare angle enables efficient fluid flow and pressure transfer.
Top product applications:
- Hydraulics
- Hydraulic systems require precise connections to maintain pressure and flow. This 90-degree elbow fitting is designed for use in hydraulic systems, providing a reliable connection between tubes and pipes.
- Industrial
Flared Fitting Elbow, Fitting Material Brass, Flare Angle 45 Degrees , Application Hydraulics, Fitting Side A Connection Type Inverted Flare, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 3/8 in, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Thread Size 3/4 In.-18, Hex Size 29/32 in, Maximum Operating Pressure 2,000 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 1 21/32 in, Specific Fitting Shape 90 Degrees Elbow, Standards ASA, ASME, MS, SAE, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 0.90
- Package Height: 1.10
- Package Weight: 0.26
Product info last updated on April 5, 2026 2:16pm UTC
Category: Pipes, Valves and Fittings
