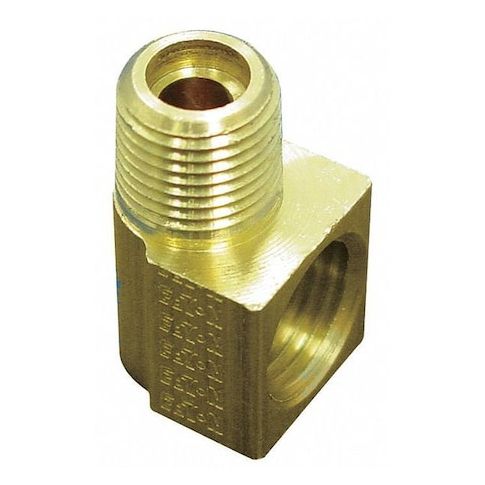

1/4" x 5/16" Inverted Flare Brass 90 Degree Elbow MPN:402X5X4
1/4" x 5/16" Inverted Flare Brass 90 Degree Elbow
This 90-degree elbow fitting is designed for hydraulic applications and features an inverted flare connection on one side and MNPT threads on the other. Constructed from durable brass, it can withstand high pressures of up to 2,000 psi and temperatures of up to 250°F. Its compact design measures 1 5/32 inches in length, making it ideal for use in tight spaces. The fitting is compliant with various industry standards, including ASA, ASME, MS, and SAE, and is UL listed for added assurance. Suitable for use in a range of industries, including oil and gas, automotive, and industrial manufacturing.
Top product features:
- Inverted flare connection on side A
- 45 degree flare angle
- Maximum operating pressure of 2,000 psi
Top product applications:
- Hydraulics
- Hydraulic systems use the product to connect and direct fluid flow.
- Hydraulic systems rely on the product to ensure efficient and safe operation.
Flared Fitting Elbow, Fitting Material Brass, Flare Angle 45 Degrees , Application Hydraulics, Fitting Side A Connection Type Inverted Flare, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 5/16 in, Fitting Thread Size 1/2 In.-20, Hex Size 19/32 in, Maximum Operating Pressure 2,000 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 1 5/32 in, Specific Fitting Shape 90 Degrees Elbow, Standards ASA, ASME, MS, SAE, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.20
- Package Height: 0.70
- Package Weight: 0.08
Product info last updated on March 19, 2026 4:38am UTC
Category: Pipes, Valves and Fittings
