1/8" x 1/4" Brass 90 Degree Elbow MPN:402X4

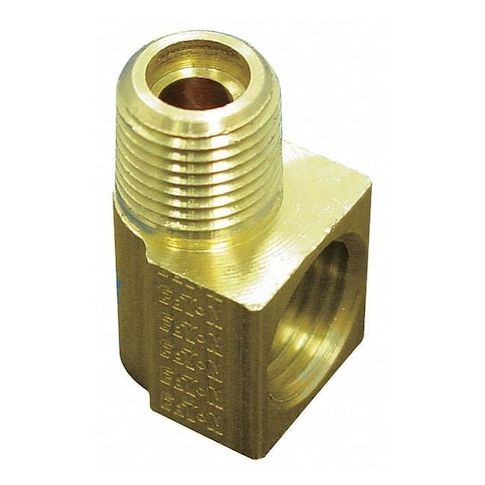

1/8" x 1/4" Brass 90 Degree Elbow
This Weatherhead 1/8in x 1/4in Brass 90 Degree Elbow is a versatile and reliable fitting for hydraulic applications. Its flared design allows for a secure connection, while the brass material provides excellent durability and resistance to corrosion. Suitable for use in high-pressure systems, it can withstand up to 2,000 psi and temperatures up to 250°F. This fitting is ideal for use in industrial settings, such as manufacturing facilities, construction sites, and laboratories, where precision and reliability are crucial. Its compact size and ease of installation make it a convenient choice for a variety of applications.
Top product features:
- 1/8in x 1/4in Brass 90 Degree Elbow features a flared fitting design for secure connections.
- The elbow has a 45-degree flare angle for reliable hydraulic applications.
- The fitting has a 7/16 In.-24 thread size for easy connection to MNPT pipes.
Top product applications:
- Hydraulics
- Hydraulic systems use the product to connect and redirect fluid flow
- Hydraulic systems use the product to connect and redirect fluid flow in applications such as heavy machinery and industrial equipment
Flared Fitting Elbow, Fitting Material Brass, Flare Angle 45 Degrees , Application Hydraulics, Fitting Side A Connection Type Inverted Flare, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1/8 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Thread Size 7/16 In.-24, Hex Size 17/32 in, Maximum Operating Pressure 2,000 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 15/16 in, Specific Fitting Shape 90 Degrees Elbow, Standards ASA, ASME, MS, SAE, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.90
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.03
Product info last updated on March 7, 2026 9:58am UTC
Category: Pipes, Valves and Fittings
